PCIe All IO Registers System
PCIe FPGA Expansion Card allows I2c, SPI, FIFO I/O with RS485 and LVDS interface on embedded PC
All I/O registers PCIe FPGA system
Simple Slave Registers Peripheral
The All I/O registers PCIe FPGA system includes all Customer needs to start designing and practicing with PCI-Express using preferably GEB Enterprise PCIe boards family. It make available 7 PIOs totally settable as inputs or outputs, to manage the pins available on the I/O connectors.

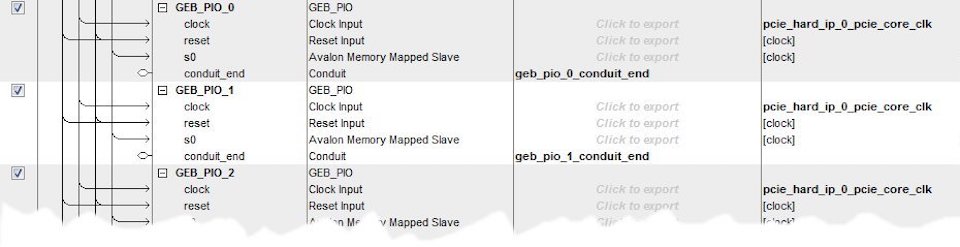

Using QSYS the following IP has been instanzied and configured:
- 1 PCIe Hard IP
- 7 PIOs totally settable as inputs or outputs
- 1 EPCS Flash controller
Moreover, a simple Test Application is provided in conjunction with the device drivers (available for different x86 platforms). The Test Application allows the user to easily control I/O by means of an intuitive Graphical User Interface (GUI).
Furthermore, the provided source code allows you to understand how to use the drivers in a custom application
The system shall be changed by customer having a fully functioning start point…
- Click here to open data sheet
- Click here to view all documents list
Buy Online
- 120107-01A1 MS-Windows 32bits, XP and Seven version
- 120107-01A3 MS-Windows 64bits, Seven version
- 120107-01A4 Linux64 version
